Cloud Failover

Posted on 10-14-2020

55 Hours of No Power

While deploying this website I figured since I already have a kubernetes environment at home, I'd just plan to deploy to my homelab cluster. My power and internet have been stable enough in the past few years, and the price of the home deployment is cheap. I figure I can take a smaller outage occasionally. Well.. development on this website has increased lately, and Salt Lake City recently had a historic windstorm that resulted in my property losing power for 55 hours! There were other properties in SLC that had lost power for 5+ days! Needless to say will.gleich.tech was down for those 55 hours, and that was unacceptable. I wanted to find an inexpensive solution to allow for fail over to the cloud. I had been looking at exploring lambdas and thought this would be perfect. If I can configure a cloud monitor in GCP, and if that monitor triggers a lambda, I could utilize that cloud monitor to deploy a new replica of my web server in the cloud. After a manual mock-up it looked like GCP's cloud run would be the deployment solution. Cost savings is a big goal here which is why I didn't look into a full static deployment and load balancing.

Project Time

Goals

The project started with these goals:

  • Low Cost DR/Failover Solution for https://will.gleich.tech
    • Monitor based trigger to alert for downtime
    • Automatic deployment into the cloud
  • Secondary Goal: Learning about google functions, iam and api

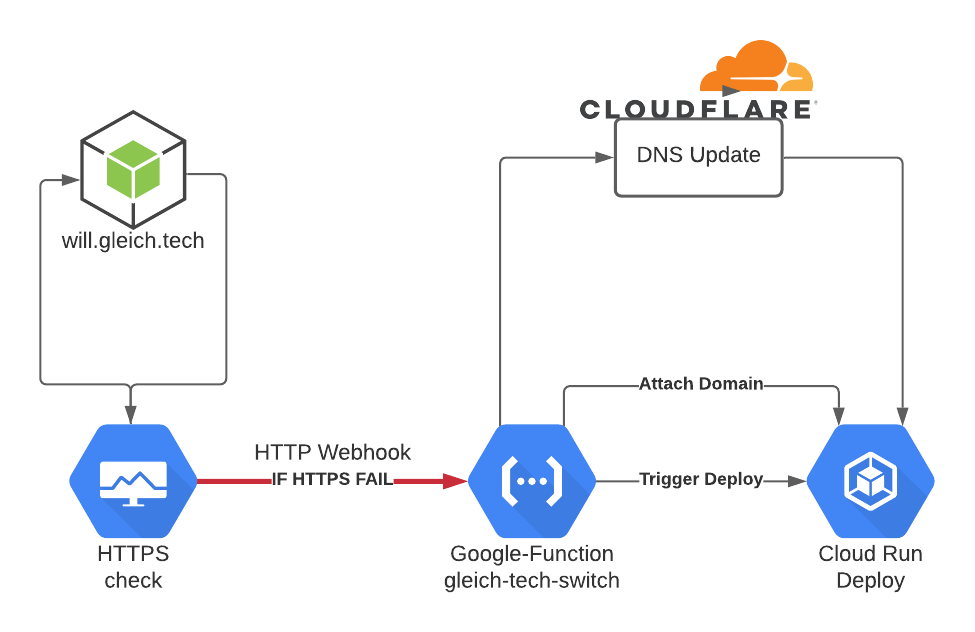

Architecture

Python Client

The work was cut out for me, it was time to start digging into coding and wiring up deployment of the newly minted "gleich-tech-switch" lambda project. I wanted to get some exposure to GCP's APIs to get a firm footing, I was confident google had some sort of python integration with all of their offerings. This step took longer than I initially anticipated, I went into this thinking I'd be copying and pasting some code which was only partially true. After some trial and error I found a workable solution and gained experience with the google-api-python-client python package. This package builds an api around google's REST api menu offerings. All of GCPs REST Schema are available on the web to allow for dynamic api client creation. Using the following command cloud_run = googleapiclient.discovery.build('run', 'v1') an API schema is brought in. I decided I wanted to abstract their client into my own class to allow for readable code, and here is a snippet of my CloudRunService abstraction:

class CloudRunService(object):
    def __init__(self, service_name, project, location):
        self.service_name = service_name
        self.project = project
        self.location = location
        self.cloud_run = googleapiclient.discovery.build('run', 'v1')

    def delete(self):
        return self.cloud_run.projects().locations().services().delete(
            name=f"projects/{self.project}/locations/{self.location}/services/{self.service_name}").execute()

Project variable is the project number you are working in and location is the region you are selecting. So that was that, I was able to deploy a cloud run instance utilizing python. Now to wire up this code so the code can be called as a google function.

Serverless

I have read about and used serverless in the past. I immediately started jumping to deployments using the serverless node.JS based helper utility. Getting the local deployments off the group were a breeze, serverless create --template google-python --path gleich-tech-switch and I had a template. A few minor edits and I was already deploying with serverless deploy using the helloworld example. Getting a helloworld template'd and deployed was trivial, however things started to become more involved while trying to integrate the serverless with my drone.io build process. I needed to leverage the serverless-python-requirements plugin for handling python dependencies. Serverless was clearly an AWS first tool after testing, and the integratation with GCP was frustrating. Runtimes and binary names were mismatched, and dockerizePip would've required docker.sock or privileged access to my cluster. Furthermore, I decided that I did not want to maintain my own serverless build docker image and was surprised to not find a community maintained serverless docker image. After reading the google functions documentation I immediately started testing gcloud functions deploy --trigger-http and it was so easy. It uses google cloud build in the background and handled all of my requirements.txt. It turned something that was getting quite complex into something simple.

Cloudflare

There really isn't much to say here on an implementation front, cloudflare offers an amazing free tier service. The web ui is easy to navigate, their python client was also easy. I was pushing and testing code quite quickly, whether it was DNS record updating or page rule updating. The documentation around all of this is great as well. Furthermore, accessing secrets (cloudflare apikey) from google cloud both on prem and utilizing cloud iam roles attached to my function were a breeze. The hardest part was ironing out the seams between google domain management and cloudflare.

Cloud Run Domain Mapping

Upon review of my architecture, it became clear that DNS propagation was going to be a really slow step. Initially I was thinking I would reroute DNS, https://will.gleich.tech, to point to whatever records cloud run requires. Using the same python discovery api, I actually broke the google cloud run domain mapping web interface multiple times while sending malformed API requests. Oddly enough it required the API to remediate as well. After getting the api calls worked out and the code sampled it was time to start demos.immediately I was running the code locally and after a few test runs of using a vanity domain, it was decided to just keep a static failover domain dedicated to gcp cloud run. https://will.iam.gleich.tech

HTTP Triggered

At this point I had my function on continuous deployment to gcp. I had a manual image ready to go in the gcr for cloud run deployment. The cloud function has been tested with manual HTTP trigger. All of the minimal viable product (MVP) functionality was there except the automatic trigger from google monitoring. I thought that I would need to grant IAM access to the google monitoring gcloud service account to invoke my google function. This interaction wasn't immediately obvious and upon further testing it looked like google monitoring http webhooks would only trigger utilizing basic authentication, an option on the webhook configuration modal. I did some initial tests by granting function invoker access to allUsers and allAuthorizedUsers members of gcp - when I granted access to allUsers, google monitoring HTTP could obviously trigger. When I granted access to allAuthorizedUsers google monitoring wouldn't trigger. This led me to believe that http webhooks on google monitoring do not actually use a GCP IAM service account. That wasn't an implementation concern I was anticipating, however sometimes you need to pivot. Opening up my google function to the world and handling basic authentication on the function level seemed like the wrong solution.

Events

The next logical step for testing this functionality was to look at a queue based trigger. I wanted to integrate closely with GCP patterns and PUB/SUB looked to be straightforward to implement. Redeploing the google function with --trigger-topic=gleich-tech followed by some boilerplate terraform was all that was required. There was some other testing in this process with creating a manual subscriber, as well as a manually created iam policy in the console. All of this was as straightforward as I would've expected. The good news is, I have a workflow ready for testing!

It Works!

With our new pubsub topic trigger, we are ready to test actual performance! Here is the following timeline of events on Oct 2nd:

  • 17:08:09 - Triggered Failure: k scale deploy -n resume resume --replicas=0

  • 17:10:46 - Google Monitoring Alert and Published Message

  • Google Domain Mapping Status (note below is UTC vs MST):

       'status': {'conditions': [{'type': 'Ready',
      'status': 'True',
      'lastTransitionTime': '2020-10-02T23:12:33.820298Z'},
     {'type': 'CertificateProvisioned',
      'status': 'True',
      'lastTransitionTime': '2020-10-02T23:12:33.820298Z'},
     {'type': 'DomainRoutable',
      'status': 'True',
      'lastTransitionTime': '2020-10-02T23:11:04.849392Z'}],

  • 17:24:35 Google Monitoring Alert Resolution

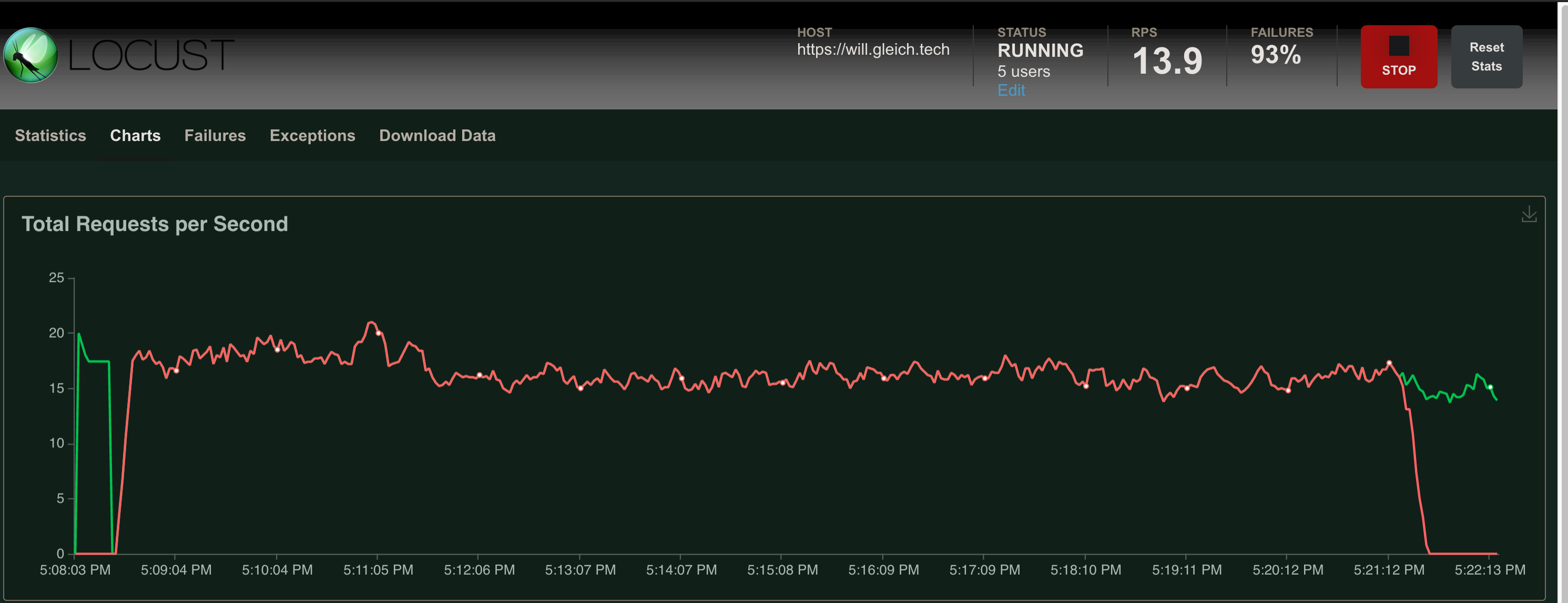

I also have a screen shot of the locust.io load testing I initiated before triggering the fail over:

This puts failure right around 17:08:30 and resolution at 17:21:39, well things are a little off from the google monitoring timing, but some error is to be expected in these tools. The good news is we did it, with a simulated fail over google monitoring triggered our google function and deployed this website in the cloud and routed the cloudflare DNS using a page rule rewrite. < sarcasm >It only took 13 minutes for fail over to take place!!! < /sarcasm > We will leave whatever happened between the Ready status of the domain routing and the service actually coming up described as one of the great mysteries of the world.

We're done! We did it!

… If only things were that easy. While we have a working product, there are numerous improvements I stumbled upon that I decided to withhold. During the previous parts of this blog I intentionally was following the architecture design that I created initially, sometimes referred to as tunnel vision. I tried to deviate as little as possible, both to create a targeted blog post, as well as emphasize the most important part of designing a new system: continuous improvement. When I created my initial architecture flow I had limited knowledge of how these integrations would work. I had an idea, but I didn't know exactly how the pieces fit together. This is shown by the changes I had made:

  • Scrapping serverless in favor of google functions deploy
  • Scrapping HTTP trigger in favor of PubSub Trigger
  • Utilizing a redirect instead of direct DNS update

Now that we have a MVP created, its time to dive in a few improvements identified. First and foremost, the 15 minute fail over time is unacceptable.

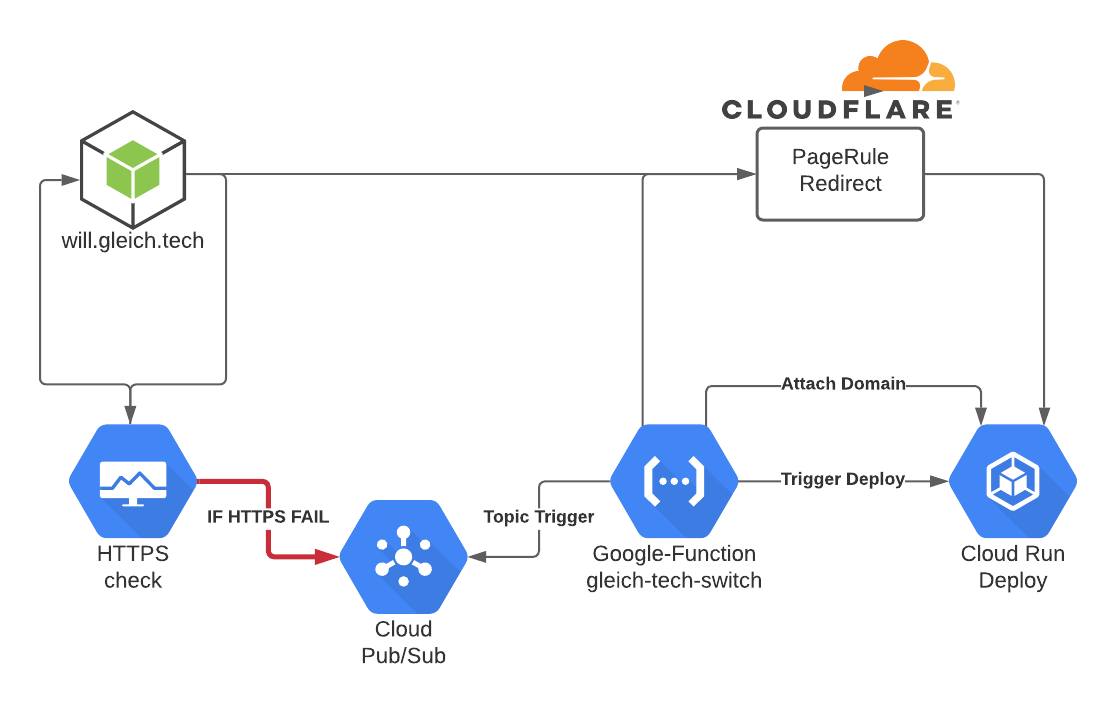

Here is the current status of the architecture:

Unauthorized Cloud Run Requests

During my deployment testing I noticed that Cloud Run invocations require permissions in order to access it. In this case my website will be openly available to the internet, allowing "allUsers" access to the invoke the cloud function. This would allow me to keep my cloud run deployed permanently with no way to access it. I do not get billed for 401 requests so that be can my "off" state with the service ready to allow for "allUsers" access. My lambda trigger could then focus on the two enabling operations:

  • Enable allUser to the cloud run invoker
  • Enable the Cloudflare Page Rule redirect to the standby domain

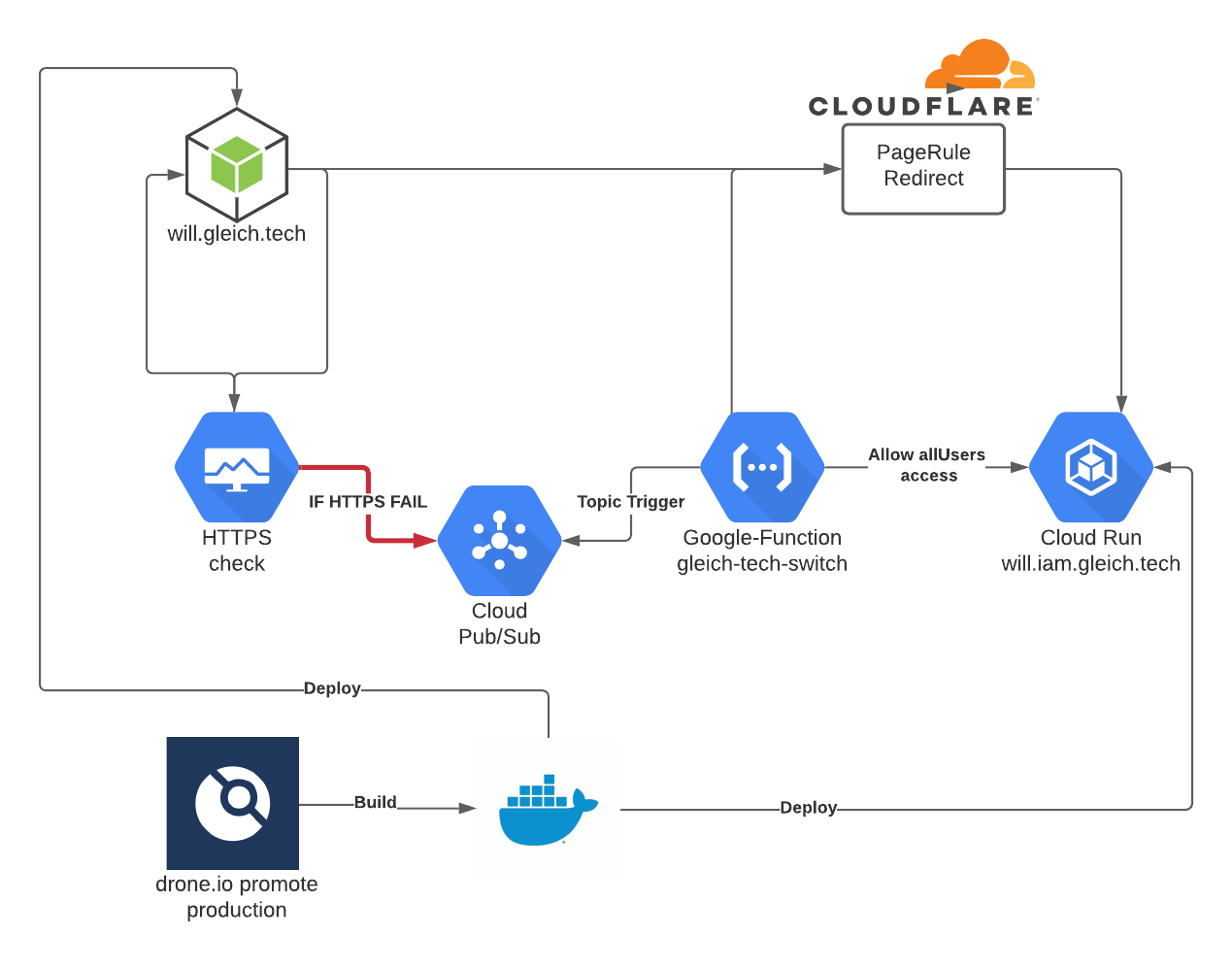

This architectural shift would require that production CI/CD deployments also push images to both gcr.io and refresh the cloud run service with the new image. This is quite straightforward inmost ci/cd platforms and was easy to implement with drone.io. Yet another architecture diagram:

Google Monitoring Toggle

I also noticed another optimization that is required: google monitoring shouldn't monitor the cloud run service after we failover. These excess requests to the cloud run "serverless" service will end up being costly, with no real benefit. If both my local house goes down as well as us-central-1, perhaps this is an outage I can afford given our low cost tolerance. This is another implementaiton with google-api-python-client, and I will leave it to you if you want to see the code:

A quick note here: While this solution makes for a great, cheap homelab solution, 3 minutes of downtime for an enterprise service is often unacceptable. Looking further into this on a enterprise level a load balancing solution would be required.

Testing time

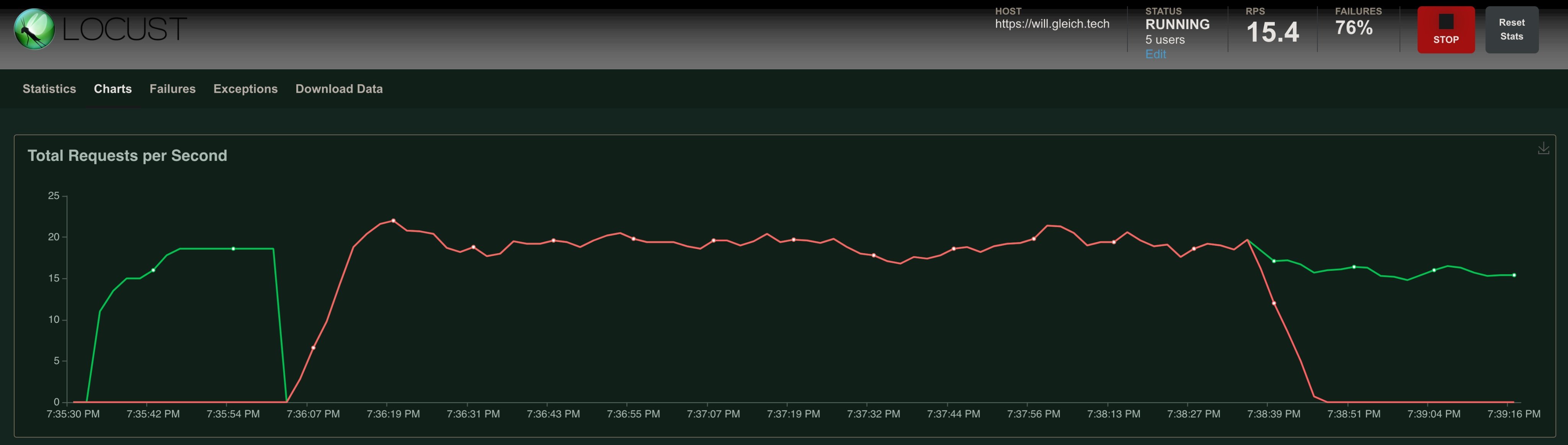

It is time to test the new layout. After another simulated failover: Now this is looking better, we brought our previous 13 minute failover down to about 3 minutes. For a cost sensitive homelab project, this is where we say "good enough." This optimized solution for a personal resume website allows for eloquent hands-off failover into the cloud in about 3 minutes.

Conclusion

This exercise highlights many important aspects of designing a new system. Manual prototyping is an amazing task that could've sped up this implementation. I hope my "tunnel-vision" example of sticking to my original design shined light on how that can be a costly endeavor. Foregoing optimizations that strike you while you are in the weeds with a new system is an exercise in futility, although one must be careful to balance time and optimization especially in the early stages of a project/product. I leave you all with an excerpt from The Pragmatic Programmer by Andrew Hunt and David Thomas, which highlights why modeling an unknown system isn't necessarily the best way to approach design.

10. Tracer Bullets

Ready, fire, aim…

There are two ways to fire a machine gun in the dark. You can find out exactly where your target is (range, elevation, and azimuth). You can determine the environmental conditions (temperature, humidity, air pressure, wind, and so on). You can determine the precise specifications of the cartridges and bullets you are using, and their interactions with the actual gun you are firing. You can then use tables or a firing computer to calculate the exact bearing and elevation of the barrel. If everything works exactly as specified, your tables are correct, and the environment doesn't change, your bullets should land close to their target.

To be pedantic, there are many ways of firing a machine gun in the dark, including closing your eyes and spraying out bullets. But this is an analogy, and we're allowed to take liberties.

Or you could use tracer bullets.

Tracer bullets are loaded at intervals on the ammo belt alongside regular ammunition. When they're fired, their phosphorus ignites and leaves a pyrotechnic trail from the gun to whatever they hit. If the tracers are hitting the target, then so are the regular bullets.

Not surprisingly, tracer bullets are preferred to the labor of calculation. The feedback is immediate, and because they operate in the same environment as the real ammunition, external effects are minimized.

The analogy might be violent, but it applies to new projects, particularly when you're building something that hasn't been built before. Like the gunners, you're trying to hit a target in the dark. Because your users have never seen a system like this before, their requirements may be vague.

Because you may be using algorithms, techniques, languages, or libraries you aren't familiar with, you face a large number of unknowns. And because projects take time to complete, you can pretty much guarantee the environment you're working in will change before you're done.

The classic response is to specify the system to death. Produce reams of paper itemizing every requirement, tying down every unknown, and constraining the environment. Fire the gun using dead reckoning. One big calculation up front, then shoot and hope.

Pragmatic Programmers, however, tend to prefer using tracer bullets.

Code That Glows in the Dark

Tracer bullets work because they operate in the same environment and under the same constraints as the real bullets. They get to the target fast, so the gunner gets immediate feedback. And from a practical standpoint they're a relatively cheap solution.

To get the same effect in code, we're looking for something that gets us from a requirement to some aspect of the final system quickly, visibly, and repeatably.

Excerpt From: Hunt, Andrew;Thomas, David “The Pragmatic Programmer: From Journeyman to Master.”

Homelab Antics Part 1

Posted on 09-05-2020

Active Directory Dreams

The year was 2016 and it all started with a dream. I had the desire to learn more about servers, networking, and programming. Living at my parents house as a recent Help Desk hire, so many of my problems at work revolved around Active Directory (AD). AD was something fully abstracted away in my Help Desk role, but I wanted to understand why gpudate /force would resolve so many configuration issues. How could I test Active Directory in a total test environment? I already had a gaming PC with VirtualBox and ample ram (32 GiB).

I'll install AD at home! I started my journey watching this awesome introductory video by Eli the Computer Guy. After some more research I had a plan in place: I wanted a Domain Controller at home that ran AD, DNS, and DHCP services. I went to the drawing board and first started looking at the family's router for configuration.

The first problem has already arisen. How can I make these infrastructure changes without any impact to the current network? DHCP and DNS services are all controlled by the simple home mesh gateway. Even if I got all these services running on my desktop PC, the uptime of my gaming PC is not enough to prevent service impacts, especially regarding DHCP. This would not meet Family Acceptance Factor (FAF) requirements.

The Gateway to Wonderland

After talking through my homelab desires with one of my colleagues at the time he recommended pfSense - the solution was identified!

pfSense is a router/firewall operating system that is commonly used by SOHO (Small Office / Home Office) deployments, and also works great as a virtual machine.

The plan was in place - down the rabbit hole we go:

  • Segment/Subnet a new network to test without impacting the parent network (This was the goal - I would learn later the following subtasks were required)
    • Virtualize a pfSense gateway bridging my gaming desktop NIC as a psuedo-WAN interface for the pfSense VM
    • Utilize virtual NIC #2 as the LAN interface as an customized internal VirtualBox network
  • Install Windows Server (AD, DHCP, DNS) and Windows Clients onto the new network

First things first, assuming that VirtualBox is already installed. You will need the amd64 ISO for pfSense to install on an "Other Linux" VM. This VM needs custom networking with at least 2 network adapaters - below are screenshots of working configuration of the WAN and LAN interfaces

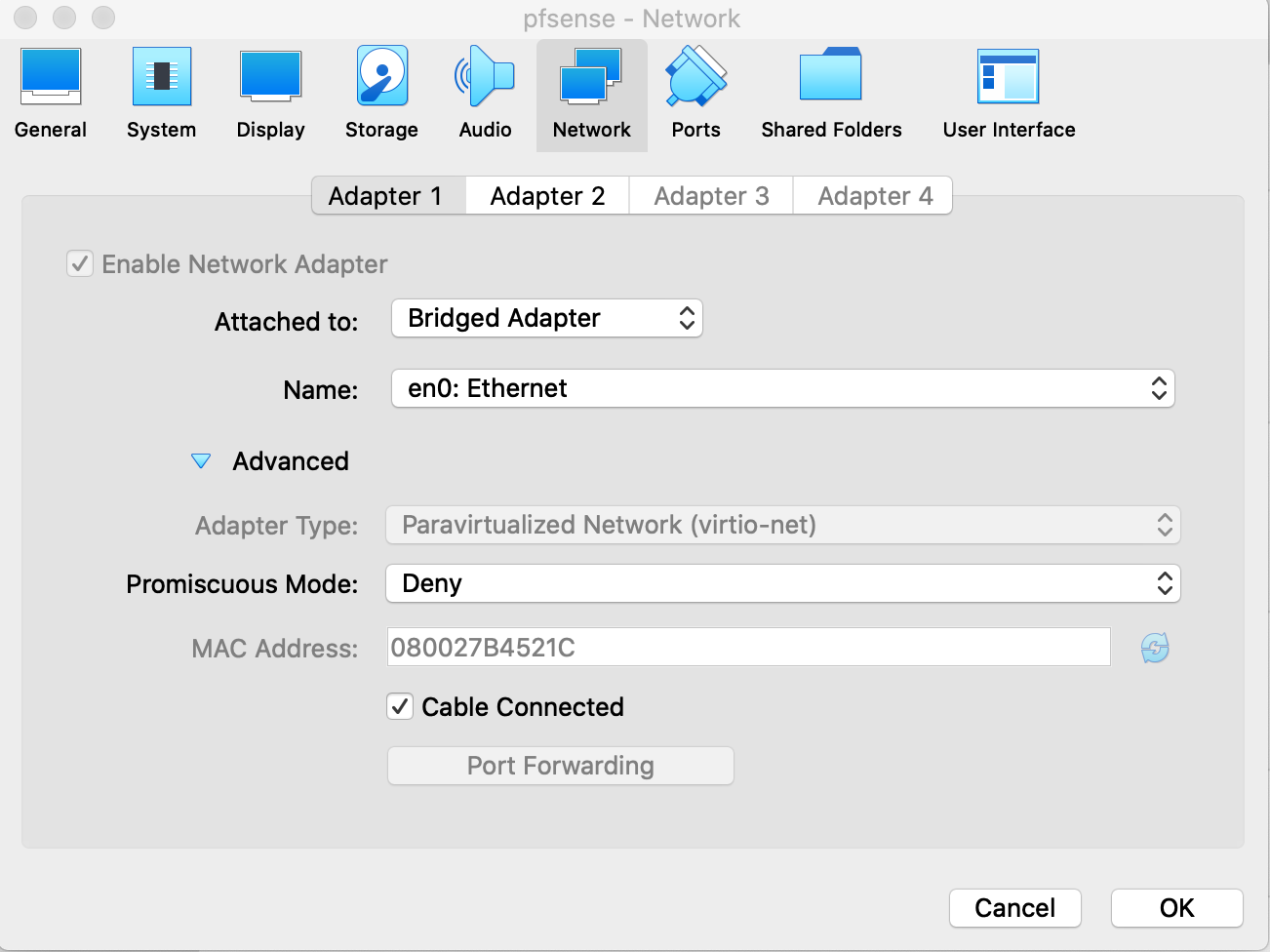

WAN

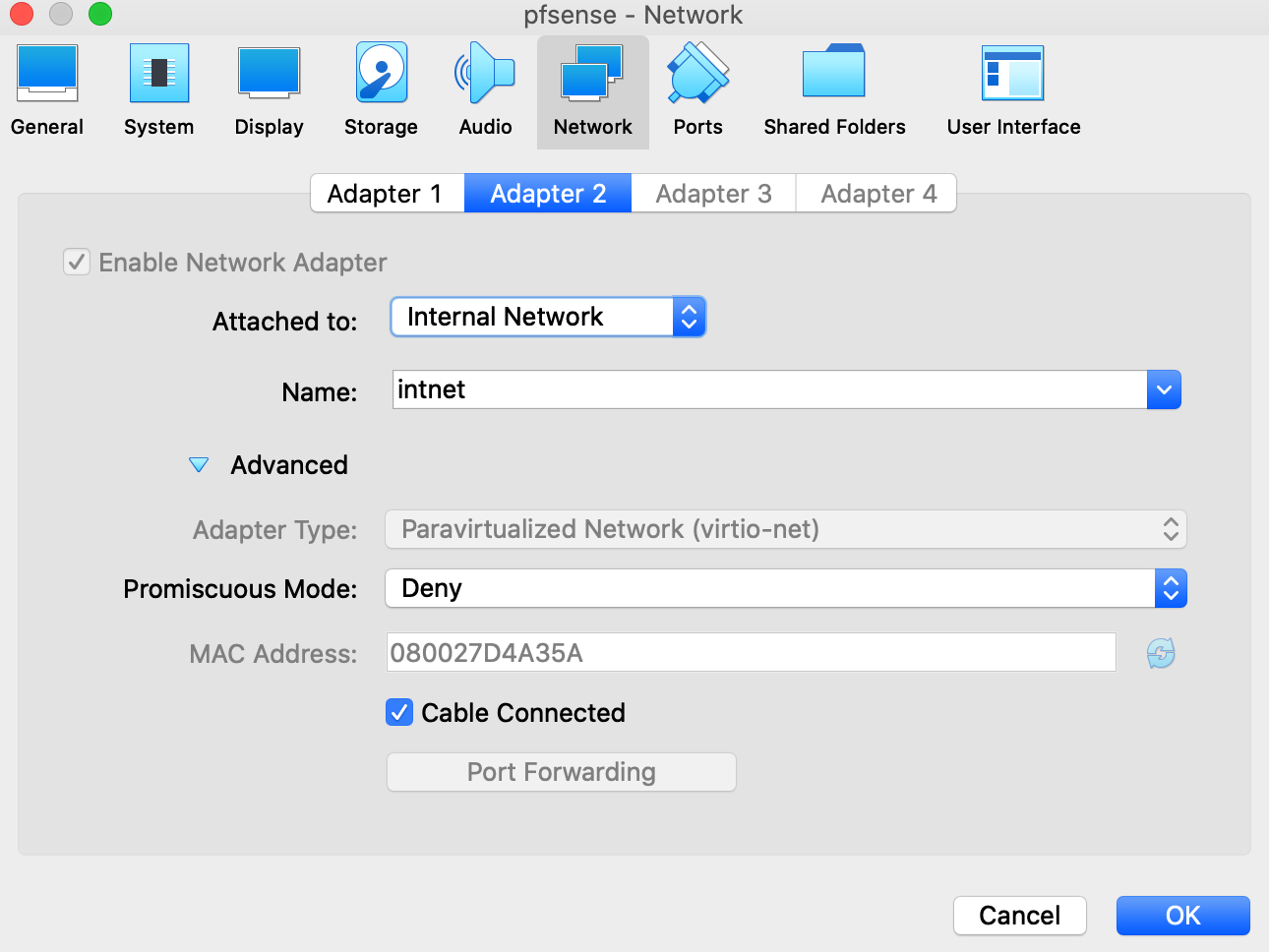

LAN

Take note of the bridged WAN interface, this will use your Desktop's ethernet adapter to mimic another computer on the network. I also had to utilize the paravirtual network adapters to get things working correctly for this demo. Here is the example configuration where DHCP is enabled on the LAN interface:

*** Welcome to pfSense 2.4.5-RELEASE-p1 (amd64) on pfSense ***

 WAN (wan)       -> vtnet0     -> v4/DHCP4: 192.168.1.183/24
 LAN (lan)       -> vtnet1     -> v4: 10.254.0.1/24

Now any VMs that are given an internal network network adapter will automatically pick up an IP on the DHCP network 10.254.0.1/24 I now had my own slice of sky to toy with AD and much more. I am intentionally leaving out details about how to get Windows Server up and running, because there are many guides that will be much better. I will however note that Windows offers a 180-day free trial for on-premises deployments In later posts I will plan to talk about how my homelab grew into a Linux environment.
